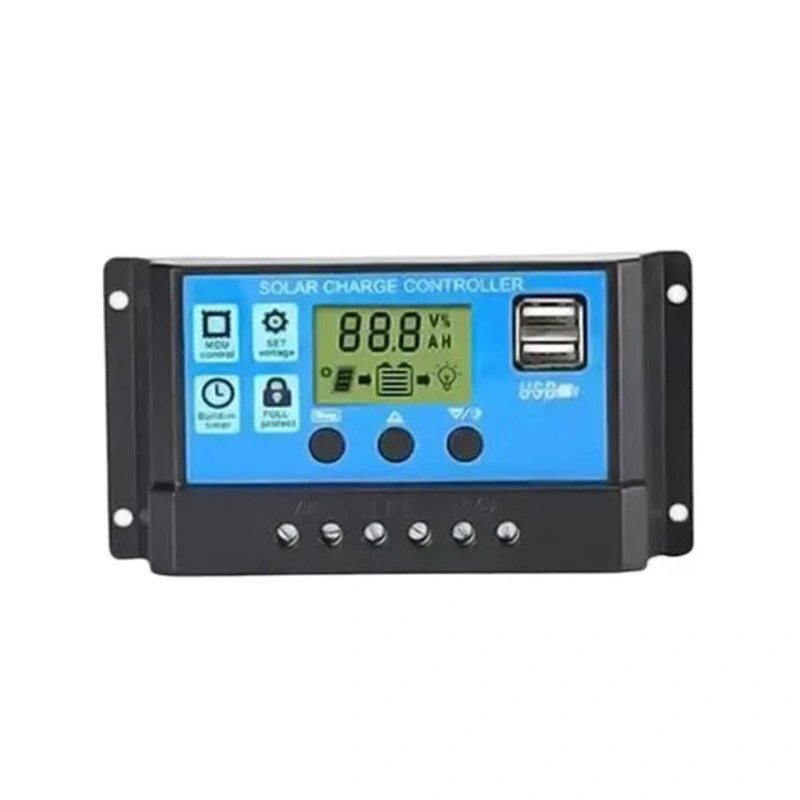

30A PWM Solar Charge Controller 12V 24V with LCD Dual USB and Timer Setting
Our Solar Charge Controller is perfect for managing the power output from your 12V or 24V solar panels, ensuring a safe and efficient charging process. With an adjustable LCD display and dual USB ports, you can easily monitor and charge your devices while on the go. The built-in timer setting and PWM auto parameter feature allow for customizable charging schedules to suit your specific needs.
Item Number: NBK-YSJJ
Size: 133*70*35mm
Features
● UPGRADED SOLAR CONTROLLER: This solar charge controller helps you manage the working of solar panels and batteries in solar systems automatically with the build-in industrial microcontroller. You don't need to reset it when the battery runs out cause it will memorize various parameters set by the user.
● WIDE COMPATIBILITY BY AUTOMATIC ADAPTATION: Compatible with 12V and 24V systems (automatic adaptation, depends on your systems's voltage, no manual adjustments required). A little amplitude voltage deviation is normal. You can also charge your mobile phone, tablet, and PC through the Dual USB output 5V/2.5A (max).
● COMPATIBLE BATTERY TYPE: This solar controller is ONLY suitable for various Lead-acid batteries (including open, sealed, colloid, etc.) Please DO NOT charge to lithium or nickel-metal hydride batteries, etc. Auto-recognizing battery voltage function can protect the battery from misuse and better control the charging process. Note: When installing the controller for the first time, please ensure the battery is fully charged to recognize the battery type correctly.
● SAFE TO USE: With Intelligent protection against overcurrent, short-circuit, open-circuit, inverse, low voltage, and overcharge, all of which are automatic recovery types, do not damage the controller. It also has a dual MOS anti-backflow circuit and low heat. This 30A solar charge controller will help you improve the system efficiency and prolong the battery life. But still note to install the controller on a flat, well-ventilated surface.
● LCD DISPLAY: Let you know the working status and data with the LCD. The regulator equips load time control and a manual setting function, so you can switch modes and configure parameters conveniently. A good choice for use at home, industrial, commercial, etc. See the instruction manual for specific parameter settings and adjustment methods.
● HOW TO CONNECT THE SYSTEM?: When installing, please install the battery first and then connect the solar panel. When disassembling, first remove the solar panel and then the battery. Please connect the devices as the instruction manual shows or the system may be damaged by misuse.
● BUY WITH CONFIDENCE: 12-month guaranty and technique support. If there is any problem, please contact us through Amazon email.
Product details
