Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 1

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 2

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 3

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 4

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 5

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 6

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 7

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine

Suitable for large area low angle power stastion where people are not easy to stand

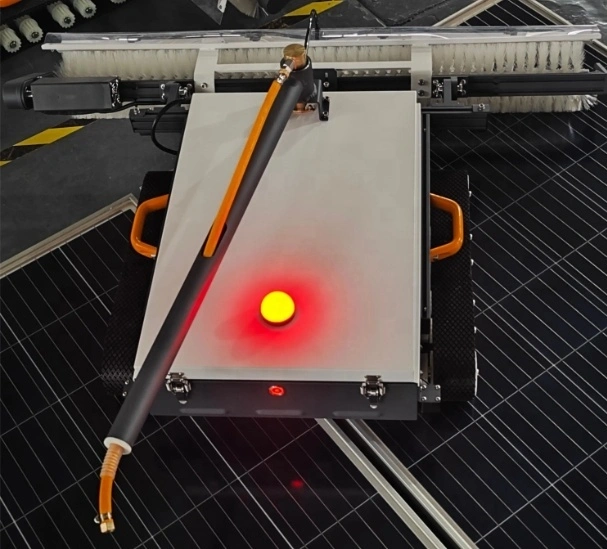

The NBK Crawler-Type Solar Panel Washing Robot is an industrial-grade solution designed specifically for large-area power stations with low-angle installations. This machine operates autonomously by remote controller, delivering consistent, thorough cleaning across vast fields of PV panels. By effectively removing dust, sand, and other debris, it significantly improves light transmittance and energy generation efficiency. This automated approach eliminates the high costs and risks associated with large-scale manual labor, offering a reliable, cost-effective, and safe method to ensure optimal performance and return on investment for utility-scale solar assets.

Model Number:

NBK-CR001

Cleaning Width:

1100mm, 1700mm

Application:

solar farm cleaning, photovoltaic panel cleaning

Supply Ability:

5,000sets per month

Customization:

OEM&ODM

Sample Order:

Acceptable

Inquiry

Write a Review

Working Effiency

1.2MW per day

Working Angle

within 25 degree

Working Time

4~10H

Lithium Battery

24V 26AH * 2

Cleaning Width

1100mm, 1700mm

Rotating Speed

400 rpm

Power Supply Version

Lithium Battery

Brush Material

Nylon

Efficient, Intelligent, Multifunctional

Efficiently remove dirt and debris from solar panels with the NBK Solar Panel Cleaning Robot, ensuring maximum sunlight absorption and efficiency. This robot features 1700mm rotating brush with powerful motors, also equipped with remote controller, workers can put it on solar panels for easy and effective cleaning.

● Powerful Cleaning System

● Advanced Anti-Fall Reminder Protection

● Extend Solar Panel Lifespan

● Maximize Sunlight Absorption

Product Display

微信截图_20250814162713

微信截图_20250814162503

22 (10)

Powerful Efficient, Versatile, Effective, Powerful

Crawer Type Solar Panel Washing Robot NBK Solar Farm Cleaning Machine 13

Powerful

Super 500W brushless motor ensure powerful and efficient cleaning for solar panels.

Efficient

CR009 one device can clean 3MW photovoltaic modules per day.

Intelligent

Robot by remote controlled can cross 60cm gap and stop when close edge

Multifunctional

Easy for do dry cleaning or water washing accordingly.

Ultrasonic Sensor Edge Recognition

Equipped with ultrasonic sensors for edge recognition, our anti-fall system automatically halts the robot at panel edges. A warning indicator lights up, and the robot can only be reversed via remote control to prevent falling.

Excellent obstacle crossing

Crafted with premium materials and a robust structure, this robot efficiently cleans across significant length and height variations on solar panels. It features 24 wide-angle nozzles (12 front and rear) for complete coverage and is equipped with paired roller brushes for high-efficiency scrubbing. The dry cleaning mode offers an ideal solution for water-scarce regions, with adaptable cleaning modes to suit any environment.

Application scenarios

for industrial area photovoltaic projects cleaning

for agricultural pv station.png

for solar farm photovoltaic panel cleaning

for livestock integrated solar projects cleaning.p
